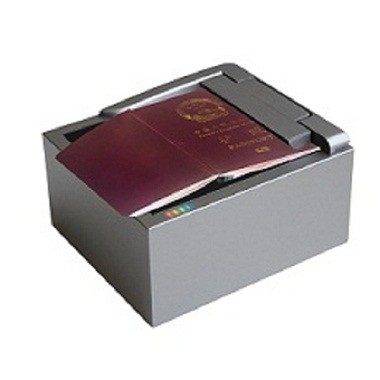

    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    Ask Lasest Price
    Brand Name : Sinosecu
    Supply Ability : 2000 Unit/Units per Month ugent orders can provide overtime production
    Price : $1,199.00/units >=1 units
    • Product Details
    • Company Profile

    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    Product Description
    Product Description

    Smart Gate face recognition ID card and passport reader

    In order to meet the needs of stations, schools, docks, supervisors, factories, buildings, intelligent district, clubs, enterprises and institutions, large-scale venues and other channels to achieve intelligent security management needs, we developed the solution of integrated ID documents reading and face recognition smart gates.

    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    The people who have resident identity cards or passport can use the face recognition technology (1:1 identify) self-help through the gates and can also be collected on-site face information
    The live photo will be compared to the local stored face information base (1:N identify) white or black list.
    When the people bypass the gates, they will scan their passport or other ID documents on the passport reader device, the information such as name, date of birth, documents number and ect will be extracted and the head photo from the ID documents will also be cropped from the documents. The on-site captured photo will be compared to the photo cropped from the documents, if they match with each other, the gate will open automatically.

    The price displayed here is just for reference, and we provide big discount for the future bulk order.


    Technical Advantages
    Technical Advantages
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    1. Multipurpose

    The passport reader is able to recognize any document in compliance with ICAO 9303.Thanks to our powerful OCR engine, we are able to customize the local non-ICAO documents;

    2. High accuracy

    The deep learning algorithm can guarantee a very high face recognition and ID documents accuracy . The accuracy is the key factor for the smartgate solution

    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    3. High integration

    The face recognition functionality is already integrated in the passport reader device. The ID documents recognition and face matching can be finished in one device and one single step.

    4. Unattended

    The device can automatically detect and classify the documents. If the live photio and the document phot match with each other, the gate will open automatically.

    Specifications
    Specifications
    MRZ
    ICAO 9303 standard compliant documents:
    ID-1 (Identity Card)
    ID-2 (Passport, Visa)
    ID-3 (Passport)

    VIZ
    Customized ID document research and OCR development
    Reading Capaility
    RFID
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B);
    Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC);
    Support active/passive authentication;

    Contact card reading
    Read smart card according to ISO/IEC 7816;
    Barcode Reading
    1D: Code 128, Code 39, Interleaved 2 of 5;
    2D: PDF 417, QR Code, Data Matrix , Aztec Code

    Imaging
    Resolution
    500DPI
    Illumination
    Visible, IR and UV
    Color Depth
    24 bits/pixels
    Sensor
    CMOS, 5.0 Megapixel
    Field of View
    127mm*88mm
    Softtware
    Supported Operation System
    Windows 7, 8, 10, Vista, XP (32/64 bit)
    Windows Server 2003 & 2008 (32/64 bit)
    Linux Ubuntu, CentOS, RedHat

    Software Development kit
    Complete OCR SDK including DLLs, OCXs, Samples and demo program
    Programming Languages
    C#, C/C++, Java, Delphi, Visual Basic 6.0, VB.NET
    Hardware
    Dimension
    166*190*103.30mm (without cover)
    166*190*142.80mm(with cover)
    Weight
    2.10-2.20kg (Net)
    2.60-2.70kg (Gross)
    Status LEDs
    Power, Ready, Error and Warning
    Power
    100-240 V, 50-60Hz, 0.8A input
    12V, 2A output
    Case
    ABS plastic
    Operating temperature
    -10℃ to 50℃ operating;

    Key Features
    Key Features
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    Contactless RFID chip reading

    Standard: ISO14443 Type A/B

    Contact smart card reading

    Standard: ISO7816

    MRZ Decoding to get Phrased data such as Nname, date of birth, Document number, date of expiry and etc.

    Certifications
    Certifications
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    Packing & Delivery
    Packing & Delivery
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    Each passport reader is packed in one small carton and 8 small cartons will be packed in one big carton for the bulk order.

    The passport readers are usually shipped out by air, and we have been partnered with FedEx, DHL, TNT and UPS.

    Our Company
    Our Company
    RFID-Enabled Smart Gate ID Card and Passport Reader with High Optical Resolution

    Sinosecu is a company focusing on the ID documents verification and authentication. Thanks to our powerful OCR software, we develop ID documents recognition on different platforms. The passport reader device is a combination of OCR software and the hardware. Our OCR mobile SDK is specially designed for Android and iOS systems, and it is ideal solution for the applications that are not able to access to internet. Our cloud OCR SDK enable the customer to upload the image to the server and structured data will be returned within seconds.
    Now our customers is from over 100 countries around the world, and our products are successfully used in different industries such as bank& financial institutions, transportation, hospitality and tourism, access control, gated community, government secto, telecoms, retailers.
