    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader

    Ask Lasest Price
    Brand Name : Sinosecu
    Model Number : APR5300
    Supply Ability : 2000 Unit/Units per Month
    Price : $1,299.00/units >=2 units
    • Product Details
    • Company Profile

    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader

    Product Description

    The price displayed here is just for reference, we provide big discount for the future bulk order.


    General Description

    Our passport reader (ID card or VISA reader) devices capture the document in white, IR and UV image, read essential information such as name, data of birth, gender, document number, date of expiry and etc. from the captured image. Our passport reader were equipped with the software development kit with OCR engine built in, which makes our passport reader capable of reading passports, travel documents, ID cards, driver license and more. Our products not only provide OCR reading (automatic data entry) of personal documents, but also read the contactless chip from ePassport, some ICAO compliant local ID cards and the contact chip from ISO7816 smart ID card.
    There is a wide range of applications of our products: immigration, border control, airports, harbors, state borders, hotel registration and Airlines , Aviation , banks , money exchange houses , hospitals , clinics , hotels hospitality , travel agency , typing centers , service centers- generally everywhere, where passengers or human traffic needs to be identified.


    Regarding Integration

    Our passport scanning solution is a perfect combination of passport reader machine and the software development kit (SDK).
    Here below are the contents in the SDK:
    1. Demo & Driver
    2. Dll & Lib
    3. Documentation (Software development Manual, user Manual)
    4. Sample codes
    The customer is able to integrate the passport reader device via DLL, OCX and websocket. The reader can be integrated seemlessly in any client/server and web based application.

    Detailed Images
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader

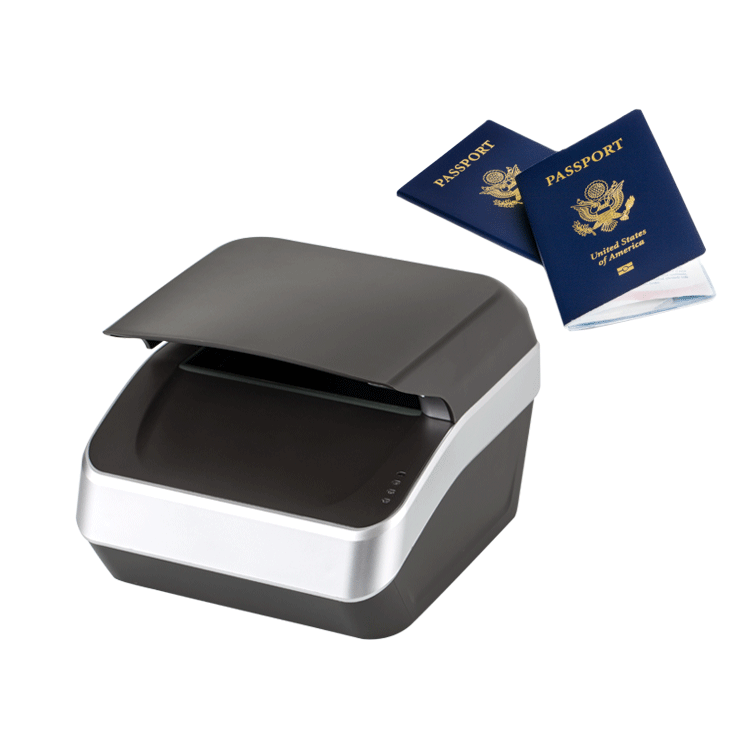

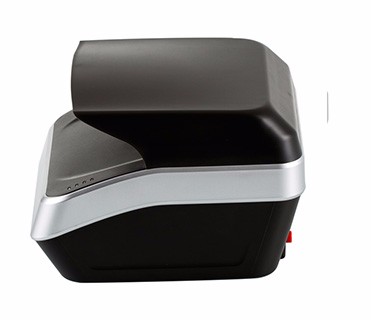

    Our passport reader is Designed for Desktop usage.

    Our passport reader is very compact and it saves the space for the users

    The passport reader have 2 altermative USB ports, whcih allow the user to connect other USB connected devices.

    Key Features
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader

    Contactless RFID chip reading
    Standard: ISO14443 Type A/B
    Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC);
    Support active/passive authentication.

    MRZ decoding to get phrased data
    ICAO 9303 compliant documents:
    ID-1 (Identity Card)
    ID-2 (Passport, Visa)
    ID-3 (Passport)

    Capture multiplle images


    The pcssport reader device is
    able to captur white, Infrared and ultro Violet images
    Key Features
    Unattended (Auto trigger and detection of ID documents)
    Very high accuracy OCR
    ICAO compliancy
    MRZ Decoding
    RFID Reading
    Multiple-light illumination (visible/IR/UV)
    Provide customer with SDK (Software Development Kit)
    High resolution image (500 DPI)
    Robust and Compact (No moving part inside and small size)
    Stable operation
    Specification
    Technical Specification
    Illumination
    Normal visible
    white
    Infra Red
    850nm
    ultra violet
    365nm
    Optical specification
    Image resolution
    500 dpi
    Image color depth
    24 bit/pixel RGB
    Software Development kit

    (SDK)

    supported Operation system
    Windows 7, 8, 10, vista, XP( 32/64 bit WHQL certified) Windows Server 2003&2008(32/64 bit) Linux Ubuntu, CentOS, RedHat
    programming languages
    C/C ++, C#, Visual Basic, Delphi, NET, Java
    processing time
    Image capture and MRZ reading < 1 sec
    Reading ability
    MRZ OCR reading
    ICAO 9303
    1D barcode reading
    Code 128, Code 39, Interleaved 2 of 5
    2D barcode reading
    PDF 417, QR code, Data Matrix, Aztec Code
    image format
    BMP, JPG,PNG

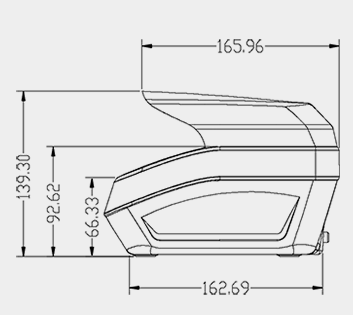

    Mechanical data
    Size with cover
    175*199*140mm
    Window size
    127*88mm
    Case
    ABS plastic
    Hardware
    Operation temperature
    -10℃ to 50 ℃ operating -20℃ to 50 ℃ storage
    operation humidity
    Weight
    1.25 kg
    Interface
    USB 2.0
    Power
    external power supply
    Packing & Delivery
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader

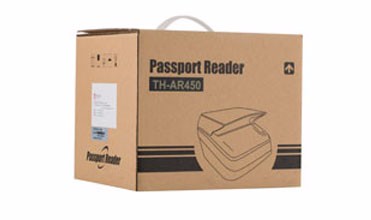

    Each passport reader is packed in one small carton and 8 small cartons will be packed in one big carton for the bulk order.

    The passport readers are usually shipped out by air, and we have been partnered with FedEx, DHL, TNT and UPS.

    We encase the passport reader with pearl wool inside the carton, protecting the device from being damaged during shippment.

    Certificates
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    High Resolution Document Imaging and NATIONAL ID Document Reader with Visa Reader
    Q&A

    1. Do you have the items in stock?
    The most of products are in stock. We can send the goods out within 3 days after payment received.

    2. Can you make OEM for products?
    OEM products are available for customers as long as customers meet the MOQ.

    3. What warranty and after-sale service do you offer?
    We provide one-year warranty. During warranty period, we will be responsible for the damage caused by non-human factors. If it is over the warranty period, we will continue to provide service at reasonable price.

    4. How about the shipping way?
    There are DHL, FedEx, TNT, UPS, air cargo, by sea (we also can ship goods by your shipping account or other agent you provided)

    5. What kind of operating system does Sinosecu Passport Reader support?
    Sinsoecu Passport Reader can support most Windows and Linux systems.

    6. What’s the application of Wintone passport reader?
    Our Passport Reader could be widely used in embassies, border crossings, public securities, airports, Train terminals, bus terminals, hotels, banks, and travel agencies etc.

    7. Do you offer other relevant items?
    Yes, we do. We are offering mobile OCR SDK and cloud OCR SDK, Bank card reader etc.

    8. How can I get samples?
    We don't provide customer with free sample. After we receive the payment, we can start the delivery from our stock. The sample unit will be shipped out via air express.

    9. Does this machine extracts photos from passports? And does it come with software?
    Yes, Wintone Passport reader can extracts photo from the scanned passport, ID cards and visa and etc.

    10. Does this machine come with software?
    Yes, it does. The Wintone Passport Reader is an all-in-one solution for ePassport reading and checking. Both hardware and software are included.
